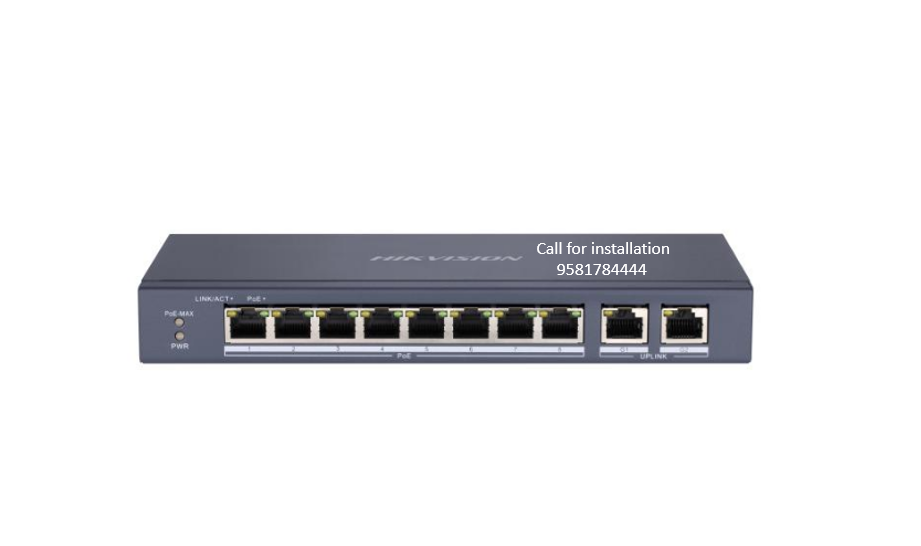

SMART POE SWITCH HIKVISION DS-3E1309P-EI 8PORT FAST ETHERNET SMART POE SWITCH

SMART POE SWITCH HIKVISION DS-3E1309P-EI 8PORT FAST ETHERNET SMART POE SWITCH

SMART POE SWITCH HIKVISION DS-3E1309P-EI 8PORT FAST ETHERNET SMART POE SWITCH

PRODUCTLINK: DS-3E1309P-EI – Network Switches – Hikvision

• General
• ShellMetal material, fan-free design
• Net Weight0.35 kg (0.77 lb)
• Gross Weight1.114 kg (2.45 lb)
• Dimensions (W × H × D)170.00 mm × 27.60 mm × 93.10 mm (6.69” × 1.09” × 3.67”)
• Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
• Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
• Operating Humidity5% to 95% (no condensation)
• Relative Humidity5% to 95% (no condensation)
• Power Supply48 VDC, 2.5 A
• Installation ModeDesk-Mounted,Wall-Mounted
• Max. Power Consumption120 W
• Power Consumption In Idle10 W
• Surge Protection6 KV

• Network Parameters
• Ports8 × 10/100 Mbps PoE port,1 × 1 Gigabit RJ45 port
• MAC Address Table16 K
• Packet Forwarding Rate4.17 Mpps
• Internal Cache4 Mbits
• Switching Capacity5.6 Gbps

• PoE Power Supply
• PoE StandardIEEE 802.3af,IEEE 802.3at
• PoE Power Pin8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
• PoE PortPoE: Ports 1 to 8
• Max. Port Power30 W
• PoE Power Budget110 W

• Software Function
• Long Range

  Ports 1 to 8: up to 300 m.

  Long range performance may vary depend on camera model or cable condition.

• VIP Port/
• Port Isolation/
• PoE Watchdog/
• Link Aggregation/
• QoS/
• Loop Prevention/
• VLAN/
• HPP

  Support one-click activation and remote management via Hik-Partner Pro. Functions supported:

  1. Display the port rate.

  2. Display the port bandwidth utilization rate.

  3. Display the PoE power usage.

  4. Display topology information.

  5. Display the alarm status.

  6. Restart ports and devices.

  7. Enable port long-rage mode.

  8. Remotely upgrade the device.

• System Maintenance

  Support device management via web.

  Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.

  Support Super IP, which is a fixed IP address (10.180.190.200) for direct access.

  Support management via Hik-Central Pro.

  Support remote management via Hik-Partner Pro.

  Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected.

  Supports 802.1ab LLDP for peer device discovery.

  Support SNMP v1/v2c for third-party management platform access.

  Support port mirroring for fault locating.

• Port Rate-Limiting/
• Storm Control/
• IGMP Snooping/
• DHCP Snooping/
• ACL/
• IPSG/

• Approval
• EMCFCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
• SafetyUL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
• ChemistryCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
